Product Details
AU6P7P
HYDRANT MASTER


Part No:AU6P7P


  Details

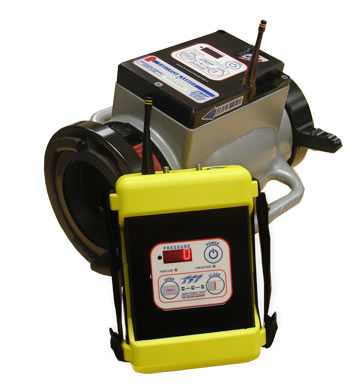

HYDRANT MASTER
The Hydrant Master is a lightweight, low friction-loss hydrant valve that can be used in many water supply operations. Water pressure from opening the hydrant automatically turns on the Hydrant Master electronics. The valve opens and closes under radio control with an innovative slide valve which allows the control of high flows with a device that only weighs 31 pounds and consumes extremely low power. A handheld controller with pressure display and positive feedback of valve position controls the valve in excess or 1200 feet (366 m) away and allows hydrant pressure to be monitored remotely from the fire scene. Both the valve and handheld are equipped with backlighting for use in low-light situations. Manual override is provided on the valve control panel. The radio used is of the spread spectrum variety (like wifi) such that no license is required. The valve and handheld are both powered by (4) AA lithium batteries which will provide 140 hours of reliable operation. A low battery indicator will light at both the valve and at the hand held controller when 20 hours of battery life remain. The unit will go into power save sleep more after five minutes of operation without a button being pressed.

Weight: 31 lbs ( kg)

Coupling Style Side A Handle
Coupling Style Side B Male Threads
Coupling Swiveling/Rigid Side A Swivel (non-full time, no swivel after tightening)
Finish Powdercoated Stardust Silver
Material Aluminum
Operation Energy Source Hydraulic/Battery Power
Valve Actuation Method Remote Control
Water Flow Style RC Hydrant Valve
Coupling Swiveling/Rigid Side B Rigid
Valve Design Slide Valve (Aluminum)
Coupling Size Side A 4.0 Inch (100mm)
Connection Type Side A NH Female
Connection Type Side B NH Male
Coupling Size Side B 4.0 Inch (100mm)
Waterway Size 4.5 Inch (115mm)


     Related Videos
    Hydrant Master Video

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE





PRODUCT SERIES OVERVIEW
•   VALVE SPECIFICATIONS
Main LDH Waterway size (at valve seat): 4.5” (114 mm)
Minimum Operating Pressure: 5 psi (0.7 Bar) NOT FOR SUCTION USE.
Maximum Operating Pressure: 300 psi (20 bar)
Hydrostatic Proof Test Pressure: 900 psi (62 bar)
Temperature Rating*: -25°F to 135°F (-32°C to 57°C)
Batteries: 4 AA batteries, Lithium recommended
Expected valve battery life: 140 hours lithium, 100 hours alkaline
*For temperatures below 32°F (0°C), valves must be drained after use to avoid damage.
