D75D
BALL VALVE 1.0" NH X 1.0" NH (25mm x 25mm)


Part No:D75D


  Details

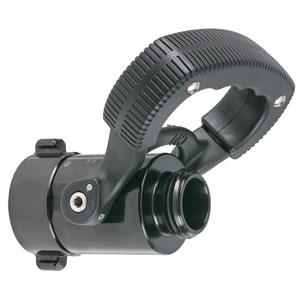

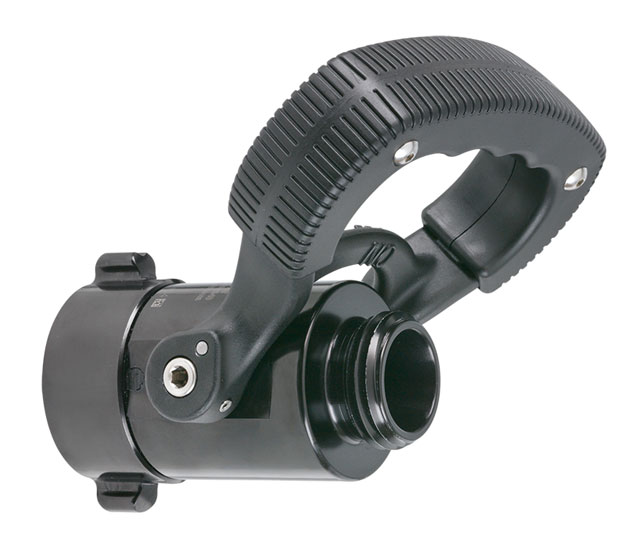

BALL VALVE 1.0" NH X 1.0" NH (25mm x 25mm)
Ball Valve with an unobstructed ¾" (19 mm) waterway. All lightweight materials, hard coat anodized aluminum. Quick-change rear valve seat and stainless steel shut-off ball. Optional color coded handle covers available. 1.0" NH (25 mm) rocker lug swivel inlet, and 1.0" NH (25 mm) male outlet standard.

Weight: 1.3 lbs (0.589 kg)

Water Flow Style Valve
Coupling Size Side A 1.0 inch (25mm)
Coupling Style Side A Rocker
Coupling Swiveling/Rigid Side A Swivel (non-full time, no swivel after tightening)
Connection Type Side A NH Female
Coupling Size Side B 1.0 inch (25mm)
Coupling Style Side B Male Threads
Coupling Swiveling/Rigid Side B Rigid
Connection Type Side B NH Male
Valve Design Ball Valve (Stainless)
Valve Actuation Method Horseshoe (Injection Molded Nylon w/ Colored Handle)
Waterway Size 3/4 inch (19mm)
Nozzle Body Style Nozzle with shutoff
