Part No:F100F-IF

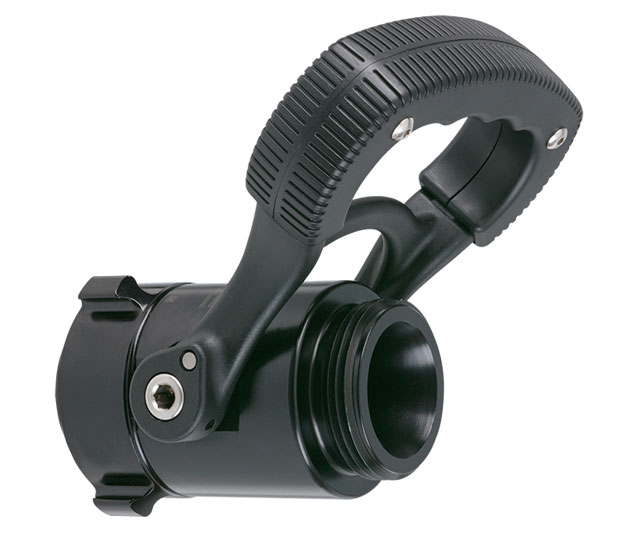

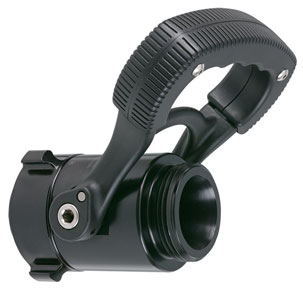

BALL VALVE 1.5NPSH X 1.5NPSH 1" WATERWAY SWIVEL COUPLING
Ball Valve with an unobstructed 1.0" (25mm) waterway. All lightweight materials, hard coat anodized aluminum. Quick-change rear valve seat and stainless steel shut-off ball. Optional color coded handle covers available. 1.5" NH (38mm) rocker lug swivel inlet, and 1.5" NH (38mm) male outlet standard.
Weight: 1.8 lbs ( kg)
|
|
|
 |
|
| Water Flow Style |
Valve |
| Coupling Size Side A |
1.5 inch (38mm) |
| Coupling Style Side A |
Rocker |
| Coupling Swiveling/Rigid Side A |
Swivel (non-full time, no swivel after tightening) |
| Connection Type Side A |
NPSH Female |
| Coupling Size Side B |
1.5 inch (38mm) |
| Coupling Style Side B |
Male Threads |
| Coupling Swiveling/Rigid Side B |
Rigid |
| Connection Type Side B |
NPSH Male |
| Valve Design |
Ball Valve (Stainless) |
| Valve Actuation Method |
Horseshoe (Injection Molded Nylon w/ Colored Handle) |
| Waterway Size |
1.0 inch (25mm) |
| Nozzle Body Style |
Nozzle with shutoff |
|
