Product Details
F100FP

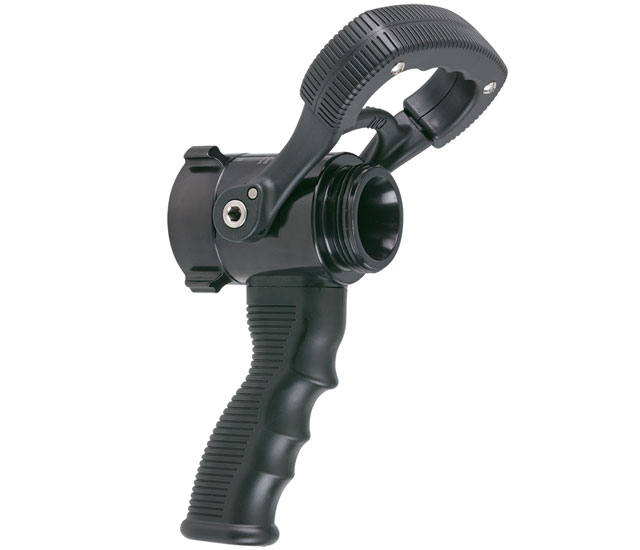

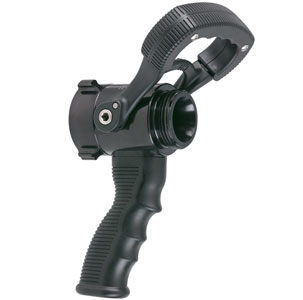

VALVE W/GRIP 1.5" NH x 1.5" NH (38mm x 38mm)


Part No:F100FP


  Details
VALVE W/GRIP 1.5" NH x 1.5" NH (38mm x 38mm)
Ball Valve with an unobstructed 1.0" waterway. All lightweight materials, hard coat anodized aluminum. Quick-change rear valve seat and stainless steel shut-off ball. Pistol grip is mounted below the valve. Optional color coded pistol grip and handle covers available. 1.5" NH (38 mm) rocker lug swivel inlet, and 1.5" NH (38 mm) male outlet standard.

Weight: 2.2 lbs (0.997 kg)

Water Flow Style Valve
Coupling Size Side A 1.5 inch (38mm)
Coupling Style Side A Rocker
Coupling Swiveling/Rigid Side A Swivel (non-full time, no swivel after tightening)
Connection Type Side A NH Female
Coupling Size Side B 1.5 inch (38mm)
Coupling Style Side B Male Threads
Coupling Swiveling/Rigid Side B Rigid
Connection Type Side B NH Male
Valve Design Ball Valve (Stainless)
Valve Actuation Method Horseshoe (Injection Molded Nylon w/ Colored Handle)
Waterway Size 1.0 inch (25mm)
Nozzle Body Style Nozzle with shutoff and pistol grip
