Product Details
F140F
BALL VALVE 1.5" NH x 1.5" NH (38mm x 38mm)


Part No:F140F


  Details

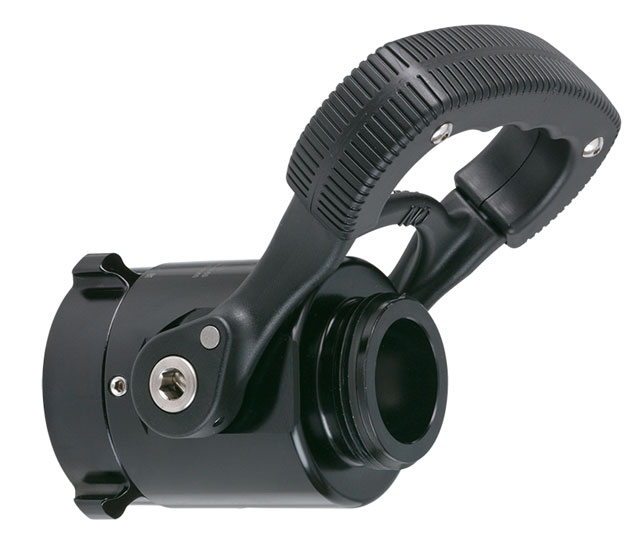

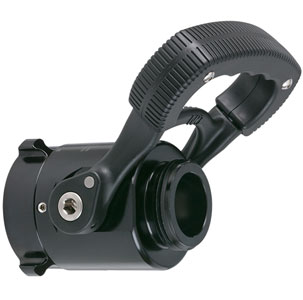

BALL VALVE 1.5" NH x 1.5" NH (38mm x 38mm)
Ball Valve with an unobstructed 1-?" (35 mm) waterway. All lightweight materials, hard coat anodized aluminum. Quick-change rear valve seat and stainless steel shut-off ball. Optional color coded handle covers available. 1.5" NH (38 mm) rocker lug swivel inlet, and 1.5" NH (38 mm) male outlet standard.

Weight: 2.5 lbs (1.133 kg)

Water Flow Style Valve
Coupling Size Side A 1.5 inch (38mm)
Coupling Style Side A Rocker
Coupling Swiveling/Rigid Side A Swivel (full time, even after tightening)
Connection Type Side A NH Female
Coupling Size Side B 1.5 inch (38mm)
Coupling Style Side B Male Threads
Coupling Swiveling/Rigid Side B Rigid
Connection Type Side B NH Male
Valve Design Ball Valve (Stainless)
Valve Actuation Method Horseshoe (Injection Molded Nylon w/ Colored Handle)
Waterway Size 1 3/8 Inch (35mm)
Nozzle Body Style Nozzle with shutoff
