Part No:H-2VO

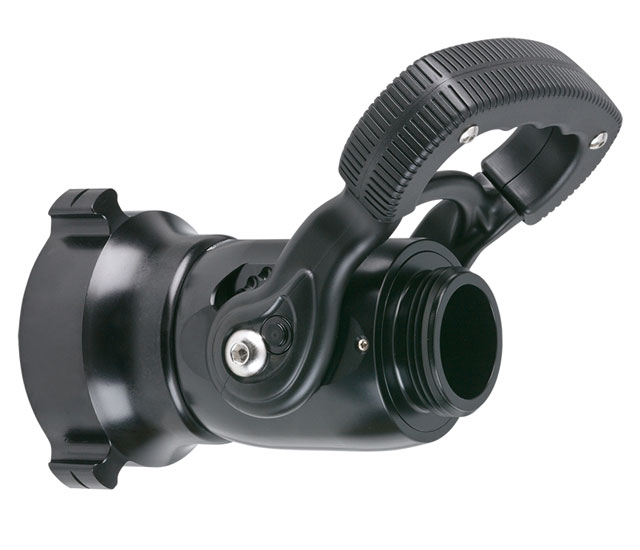

DETENT VALVE 2.5" NH X 1.5" NH (65mm x 38mm)
Separate ball-type shutoff valve with a 1-3/8" (35 mm) waterway for use with tip only nozzles. Includes six detent flow positions. Colored handle covers available. 2.5" (65 mm) NH rocker lug full-time swivel coupling, and 1.5" (38 mm) NH male outlet standard. All lightweight materials. Accepts F140SBI smooth bore insert kit found on page 13.
Weight: 2.7 lbs (0 kg)
|
|
|
 |
|
| Water Flow Style |
Valve |
| Coupling Size Side A |
2.5 inch (65mm) |
| Coupling Style Side A |
Rocker |
| Coupling Swiveling/Rigid Side A |
Swivel (full time, even after tightening) |
| Connection Type Side A |
NH Female |
| Coupling Size Side B |
1.5 inch (38mm) |
| Coupling Style Side B |
Male Threads |
| Coupling Swiveling/Rigid Side B |
Rigid |
| Connection Type Side B |
NH Male |
| Valve Design |
Ball Valve (Delrin/Acetal) |
| Valve Actuation Method |
Horseshoe (Injection Molded Nylon w/ Colored Handle) |
| Waterway Size |
1 3/8 Inch (35mm) |
| Nozzle Body Style |
Nozzle with shutoff |
|
