H-2VOI
DETENT VALVE W/GRIP 2.5" NH x 1.5" NH (65mm x 38mm)


Part No:H-2VOI


  Details

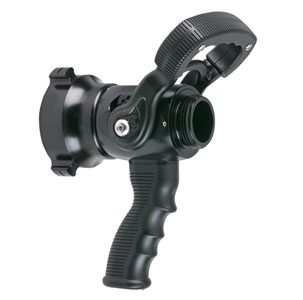

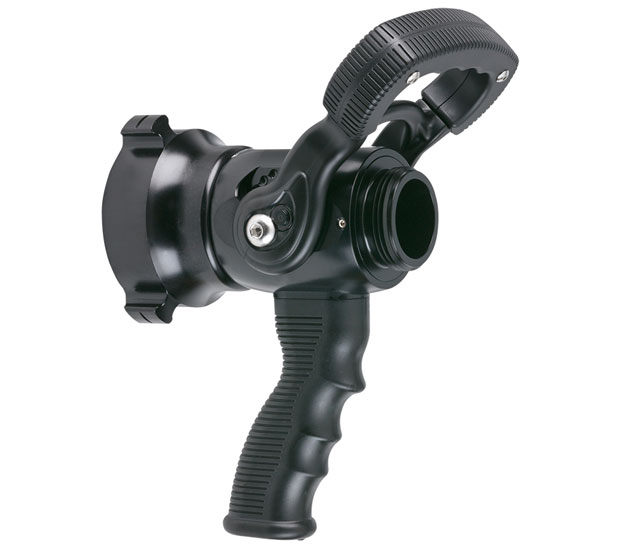

DETENT VALVE W/GRIP 2.5" NH x 1.5" NH (65mm x 38mm)
Separate ball-type shutoff valve with a 1-3/8" (35 mm) waterway and a built-in pistol grip mounted below the valve body for use with tip only nozzles. Six detent flow positions, optional colored pistol grip and handle covers, 2.5" (65 mm) NH rocker lug full-time swivel coupling, and 1.5" (38 mm) NH male outlet standard. All lightweight materials. Accepts F140SBI smooth bore insert kit found on page 13.

Weight: 2.95 lbs (1.338 kg)

Water Flow Style Valve
Coupling Size Side A 2.5 inch (65mm)
Coupling Style Side A Rocker
Coupling Swiveling/Rigid Side A Swivel (full time, even after tightening)
Connection Type Side A NH Female
Coupling Size Side B 1.5 inch (38mm)
Coupling Style Side B Male Threads
Coupling Swiveling/Rigid Side B Rigid
Connection Type Side B NH Male
Valve Design Ball Valve (Delrin/Acetal)
Valve Actuation Method Horseshoe (Injection Molded Nylon w/ Colored Handle)
Waterway Size 1 3/8 Inch (35mm)
Nozzle Body Style Nozzle with shutoff and pistol grip
