Part No:Y1-E32A

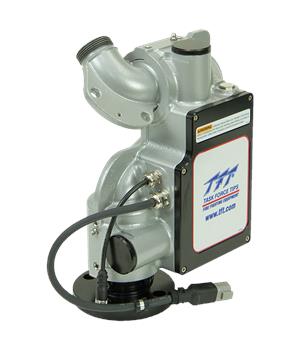

EF1 RC 1.5"ANSI 150 INLET 1.5"NHM OUTLET The EF1™ Remote-Controlled Monitor is designed to deliver powerful performance in a compact and rugged package. Capable of flowing up to 200 GPM (757 LPM), the EF1 is the ideal solution for wildland and interface apparatus. At just 12.6" tall and built with hard coat anodized aluminum, this monitor is perfect for forestry bumper turrets and other off-road firefighting applications. Equipped with programmable park and oscillation modes, sealed electric drives, and waterproof controls, the EF1 is built to handle harsh conditions while delivering precise and efficient water flow.
Key Features:
- High-Performance Flow: Supports up to 200 GPM (757 LPM), making it suitable for wildland and interface firefighting
- Compact Design: Measures only 12.6” tall and 6.1” deep, ideal for forestry and off-road applications
- Durable Construction: Built with hard coat anodized aluminum and powder-coated for extreme durability in harsh conditions
- Wide Travel Range:
- Horizontal Travel: 135° left and right of center for a total of 270°
- Vertical Travel: 45° below center and 90° above center for a total of 135°
- Programmable Features: Includes park and oscillation modes for operational flexibility and efficiency
- Easy Installation: Simplified wiring with a single factory-installed plug and compatibility with various inlets and outlets, including quick-connect couplings
- Waterproof Components: Electric drives and control box are sealed to protect against water and dust
- Adjustable Travel Stops: Horizontal stops can be adjusted for a 180° range, providing more control over the monitor’s movement
Weight: 17.3 lbs ( kg)
|
|
|
 |
|
| Monitor Configuration |
Fixed Mount |
| Flow Rate - Monitors |
0-200 gpm (0-757 l/min) |
| Operation Energy Source |
Electric (12/24 vdc) |
| Monitor Inlet |
1.5 inch ANSI 150 |
| Coupling Style Side A |
ANSI 150 |
| Coupling Swiveling/Rigid Side A |
Rigid |
| Monitor Outlet |
1.5 inch (38mm) |
| Coupling Style Side B |
Male Threads |
| Coupling Swiveling/Rigid Side B |
Rigid |
| Connection Type Side B |
NH Male |
| Horizontal Control |
N/A |
| Horizontal Movement (degrees) |
270 degrees |
| Vertical Control |
N/A |
| Vertical Movement (degrees) |
45 below to 90 above horizontal |
| Pressure Relief Valve |
No PRV |
| Valve Design |
No Valve |
| Finish |
Powdercoated Stardust Silver |
| Certifications |
N/A |
| Hazardous Location Certification |
N/A |
|
