Part No:HPM111A

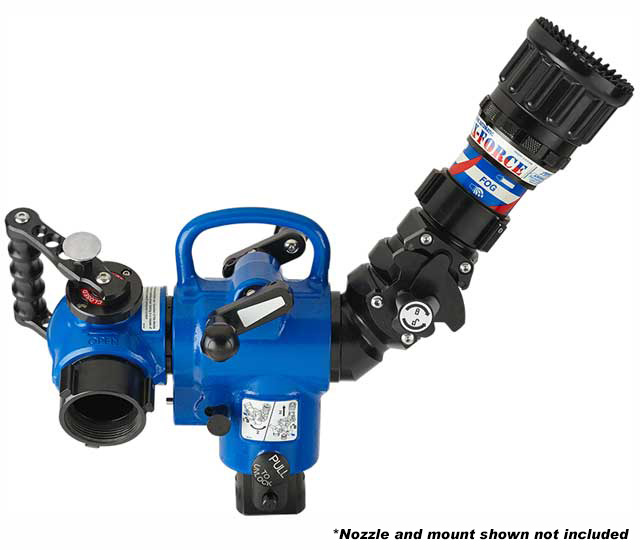

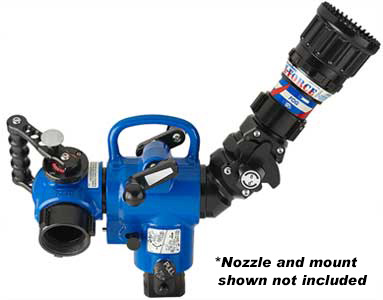

HEMISPHERE MONITOR The Hemisphere™ Mountable Monitor provides high-flow water delivery in challenging firefighting environments, reaching up to 500 GPM (2000 LPM). Engineered for adaptability, this monitor features 360-degree rotation, allowing precise targeting in hard-to-reach areas. With multiple mounting options and a lightweight, portable design, the Hemisphere™ monitor is easy to deploy and maneuver, providing reliable water flow control for firefighting operations in confined or elevated spaces for both industrial and municipal departments
Key Features:
- Flow Capacity : Delivers up to 500 GPM (2000 LPM), ideal for a range of firefighting applications
- 360° Aiming : Allows water to be directed precisely, enhancing flexibility in confined spaces
- Quick-Attach Mounting System : Securely mounts to various surfaces, with options like I-beam, hitch, and tank lip clamps for versatile use
- Lightweight Aluminum Construction : Easy to transport with a built-in carrying handle, ensuring quick setup and deployment
- Water Pressurized Safety Pins : Prevents accidental rotation/release during operation, adding safety and control
- Adjustable Stream Straightener : Built-in straightener ensures optimized stream reach and minimal turbulence
- Flow Control : Quarter-turn ball valve with a locking bail handle for precise flow management and to prevent unintentional discharge
- Wide Compatibility : Standard inlet and outlet sizes of 2.5” NH or BSP fittings, with options for Storz and other quick-connect attachments
Weight: 22.6 lbs ( kg)
|
|
|
 |
|
| Monitor Configuration |
Fixed/Portable |
| Flow Rate |
0-500 gpm (0-2000 l/min) |
| Operation Energy Source |
Manual |
| Monitor Inlet |
2.5 Inch-7.5 NH Female |
| Monitor Outlet |
2 1/2" NH Male |
| Horizontal Control |
Alum Crank Handle |
| Horizontal Movement (degrees) |
Continuous 360 |
| Vertical Control |
N/A |
| Vertical Movement (degrees) |
N/A |
| Valve Design |
Ball Valve (Aluminum) |
| Finish |
Powdercoated Dark Blue |
| Certifications |
N/A |
|
