Part No:ZM131

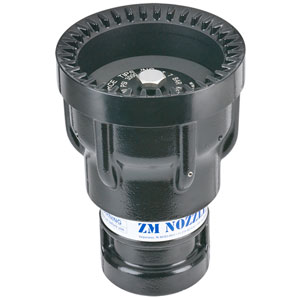

ZM INDUSTRIAL NOZZLES The Z-Series nozzles deliver powerful water streams with minimal maintenance, ensuring dependable performance in industrial firefighting scenarios.
Key Features:
- Wide Flow Range: Models available with flow rates from 250 GPM to 2000 GPM (1000-7500 LPM) for diverse applications
- Rated Performance: Operates at 100 PSI (7 Bar) or 75 PSI (5 Bar) for consistent and reliable water delivery
- Minimal Maintenance: Simple design requires no grease, reducing maintenance time and effort
- Shaper Lock Mechanism: Lock the shaper into any fog pattern for precise control
- Foam Compatibility: Compatible with the FJ-MX-MD foam attachment for enhanced fire suppression
- Durable Construction: Robust materials ensure longevity and performance in the most demanding environments
- Versatile Applications: Suitable for industrial firefighting systems, monitors, and other unique applications and scenarios
- Certified Models: Select FM-approved models available for specific industrial requirements
- Model-Specific Features:
- ZN Model: Flow rates from 250 to 750 GPM with K-Factors of 15-75
- ZM Model: Flow rates from 500 to 1250 GPM with FM-approved options
- ZO Model: Flow rates from 1250 to 2000 GPM, tested to FM Approval Class 5511
Weight: 7.2 lbs ( kg)
|
|
|
 |
|
| Operation Energy Source |
Manual |
| Flow Control Method |
Fixed Flow at a pressure (constant gallonage, flow does not change with pattern) |
| Flow Rate |
1000gpm(3800 l/min) |
| kfactor |
1000gpm@100psi -- Kfactor = 100(3800l/min@7bar) |
| Coupling Size |
2.5 inch (65mm) |
| Coupling Style (Nozzles) |
Rocker |
| Coupling Swiveling/Rigid (Nozzles) |
Rigid |
| Connection Type |
NH Female |
| Pressure |
100 psi (7bar) |
| Fog Pattern Method |
cast metal teeth (fixed) |
| Pattern Actuation Method |
Manual |
| Nozzle Bumper Material |
Metal - aluminum |
| Certifications |
FM |
|
