Product Details
Y4-MP1A-Z

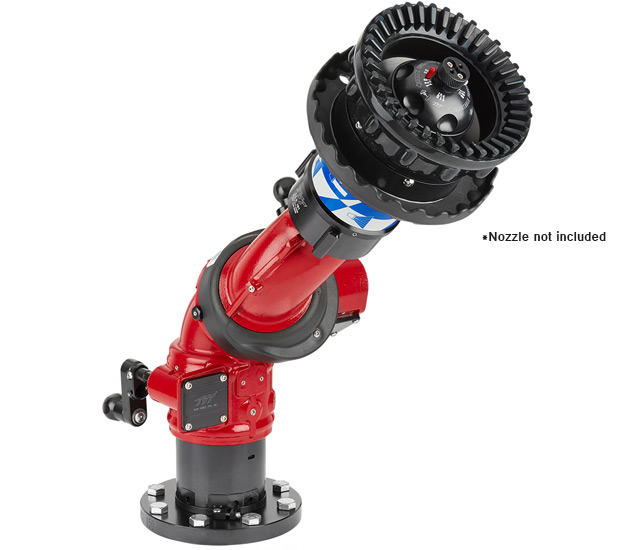

MONSOON DUAL CRANK TFT CODE-RPF INLET


Part No:Y4-MP1A-Z


  Details
MONSOON DUAL CRANK TFT CODE-RPF INLET 3.5"NH MALE OUTLET -AMER.RED POWDERCOAT
Monsoon® delivers powerful water flow with minimal friction loss for maximum efficiency. With flows up to 2000 GPM (7600 LPM) and various configurations to suit pumpers, aerial ladders, and platforms, Monsoon is the high-performance fixed monitor designed to meet your firefighting needs.

Key Features:
  • High-Capacity Flow Options: Select from 1250 GPM (4750 LPM) or 2000 GPM (7600 LPM) to handle a wide range of firefighting scenarios, ensuring optimal performance in demanding environments
  • Low Friction Loss: The patented segmented waterway design reduces turbulence and minimizes friction loss, achieving as low as 6 PSI at 1250 GPM for efficient and far-reaching water delivery
  • Configurable Models: Available in manual and remote-control (RC) versions to fit your apparatus or operational preferences. Choose models designed specifically for pumpers, aerial ladders, or platforms
  • Extensive Range of Movement:
    • Vertical travel: 90° above horizontal to 45° below
    • Horizontal travel: 360° for manual models and 450° for RC models (or 180° for ladder and platform models)
  • Durable Construction: Built with rugged materials, including powder-coated finishes and robust internal components, to withstand harsh conditions and ensure long-lasting reliability
  • Field Adjustable Stops: Easily adjust vertical and horizontal travel stops to limit movement, ensuring safe operation in confined spaces or near obstructions
  • Flexible Control Options:
    • Manual models: Dual crank or tiller bar for intuitive operation
    • Remote-control models: RS485 compatibility with precise electronic controls for programming and diagnostics
  • Compact and Versatile: Compact design fits seamlessly on pumpers, ladders, or platforms, making Monsoon adaptable to a variety of apparatus configurations and operational needs


Weight: 20 lbs ( kg)

Monitor Configuration Fixed Mount
Flow Rate - Monitors 0-2000 gpm (0-7600 l/min)
Operation Energy Source Manual
Monitor Inlet TFT Code-RPF
Monitor Outlet 3.5in (90mm) NH Male
Horizontal Control Alum Crank Handle
Horizontal Movement (degrees) Continuous 360
Vertical Control Alum Crank Handle
Vertical Movement (degrees) 45 below to 90 above horizontal
Safety Shutoff No Safety Shutoff
Pressure Relief Valve No PRV
Valve Design No Valve
Finish Powdercoated American Red
Certifications FM


     Related Videos
    Monsoon Monitor

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE





PRODUCT SERIES OVERVIEW
•   TFT Monsoon Manual Monitor offers efficient flow performance up to 2000gpm with only 15psi loss, provides full 360 degree rotational movement, and is available with 3” or 4” ANSI 150 flanges, 3”or 4” NPT thread, or with extended flange inlets to eliminate rotational clearance issues. All models are FM approved, are standard with corrosion resistant powder coating, and come with your choice of hand wheel and tiller bar operational controls.
•   TFT Monsoon Remote Control Monitors are designed for operational pressures up to 200psi, provide up to 450 degrees of rotational travel, and have an elevation range or 90 degrees above horizontal to 45 degrees below. All Monsoon pumper and aerial RC monitor versions come standard with TFT’s rugged electronics design which eliminates corrosion issues caused by water migration to electronic circuitry, have been awarded CE approval, and are easily controlled by panel mounted, tethered, or radio frequency operational controls.
•   TFT Monsoon ATEX certified RC Monitors are designed for 12/24volt operations and are tested and approved for use in Classified Hazardous Locations as defined by European Directive 94/9/EC often referred to as the ATEX directive. This directive also indicates that the monitor and nozzles are suitable for Zone 2, Category 3 environments, use position encoding and current limiting for drive train protection, and have an IP65 rating for all electrical components.
