Product Details

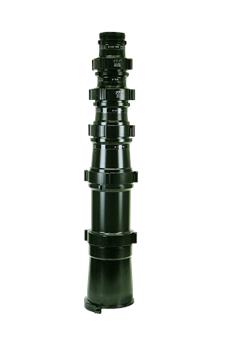

YST-8NX
4 STACK TIPS 7" QUICK CONNECT


Part No:YST-8NX


 Details
4 STACK TIPS 6.0"FEMALE 5.125" 4.50" 4.00" 3.50" TIPS
Smooth Bore Masterstream Nozzles deliver powerful, straight streams for maximum reach and fireground penetration, ensuring optimal performance in firefighting operations.

Key Features:
  • High-Quality Construction: Made from aluminum alloy with hard coat anodization for durability
  • Exceptional Stream Quality: Smooth, tapered waterway for a solid and focused stream
  • Critical Orifice Protection: Recessed edge and aluminum bumper shield the nozzle from damage
  • Easy Identification: Laser-engraved tip size and pressure/flow chart for quick reference
  • Wide Flow Range: Handles flow rates from 250 GPM (900 LPM) to 5,000 GPM (19,000 LPM) based on tip size
  • Lightweight: Designed for easy handling without compromising performance
  • Enhanced Durability: Hard coat finish resists wear and tear in the most demanding environments
  • Monitor Compatibility: Compatible with portable and fixed monitors from any manufacturer for any application
  • Proven Reliability: Simple, no-frills design for consistent, effective fireground operation


Weight: 37 lbs (16.8 kg)

Waterway Size 6.0 inch (150mm)



•   Designed for monitor use up to 8000 gpm (30280 l/min), these stacked tips are hardcoat anodized, allow four orifi ce options, have a built in stream straightener and pressure/fl ow charts laser engraved on each tip. Orifi ce openings are 5.125”, 4.5”, 4.0”, and 3.5”. (130mm, 114mm, 102mm and 89mm). Quick connect inlet coupling for Tsunami monitor is standard.
