DQS60P

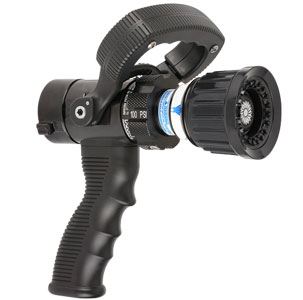

QUADRAFOG W/GRIP 1" NH (25mm)


Part No:DQS60P


  Details
QUADRAFOG W/GRIP 1" NH (25mm)
The QuadraFog® Selectable Nozzle series is built for versatility, offering multiple flow and pressure options to suit various firefighting needs. Available in high and low-pressure models for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, QuadraFog® allows firefighters to switch between a straight stream and dense fog pattern with ease. Compatible with foam attachments for enhanced firefighting power, QuadraFog® provides precision and flexibility for all fireground operations.

Key Features:
  • Selectable Flow Options: Choose from multiple flow rate options on each model
  • Pressure Options: Available in 100 PSI (7 bar), 80 PSI (6 Bar), or 75 PSI (5 bar) for your target pressure applications
  • Compatibility: Suitable for 1”, 1.5”, 2”, and 2.5” (25, 38, 52, and 65 mm) hose lines, adaptable for various firefighting setups
  • Fog Pattern Adjustment: Adjustable from straight stream to dense fog, providing tactical control over water application
  • Teeth Options: Choice of fixed metal or spinning metal teeth for effective fog creation
  • Foam Compatibility: Designed to work with low-expansion and multi-expansion foam attachments
  • Available Configurations: Tip only models with integrated valves and one-piece models with ball valves to suit diverse operational needs


Weight: 3.1 lbs ( kg)

Flow Control Method Selectable Flow at a pressure (constant gallonage, flow does not change with pattern)
Flow Rate 5-10-25-40-60 gpm
Coupling Size 1.0 inch (25mm)
Coupling Style (Nozzles) Rocker
Coupling Swiveling/Rigid (Nozzles) Swivel (full time, even after tightening)
Connection Type NH Female
Pressure 100 psi
Nozzle Body Style Nozzle with shutoff
Valve Design Ball Valve (Stainless)
Valve Actuation Method Horseshoe (Injection Molded Nylon w/ Colored Handle)
Fog Pattern Method cut metal teeth (fixed)
Nozzle Bumper Material Rubber - press fit
Certifications N/A
Foam Expansion Performance N/A



PRODUCT SERIES OVERVIEW
•   The Quadrafog Series of selectable gallonage 1 in and 1.5 in nozzles are designed for simple operation and rugged durability in wildland or structural firefighting operations. Available in tip only configurations or with a stainless steel ball shutoff and optional color coded nylon pistol grip, these series incorporate lightweight aluminum construction, reflective labeling, and stainless steel components with a protective front rubber bumper.
•   The 1 in Quadrafog Series, with its fixed cut fog tooth pattern is ideal for wildfire operations or booster line operations. The 1.5in Quadrafog Series are available with either TFTs uniquely cut style of fixed fog teeth, or our popular stainless steel spinning teeth to provide a wide protective fog pattern. All models also accept either a low or multi-expansion foam aspiration attachment.

•   All Quadrafog Series ball shutoff models offer TFTs unique quick change rear valve seat that requires no special tools or disassembly of the valve to change the rear seat assembly. The shut off handle can be color coded, laser engraved, and is produced from nylon to withstand harsh operating conditions without breaking or bending.
