Product Details

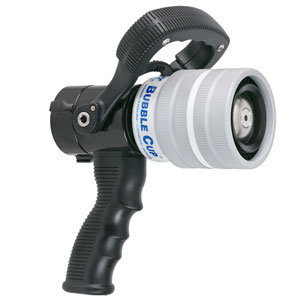

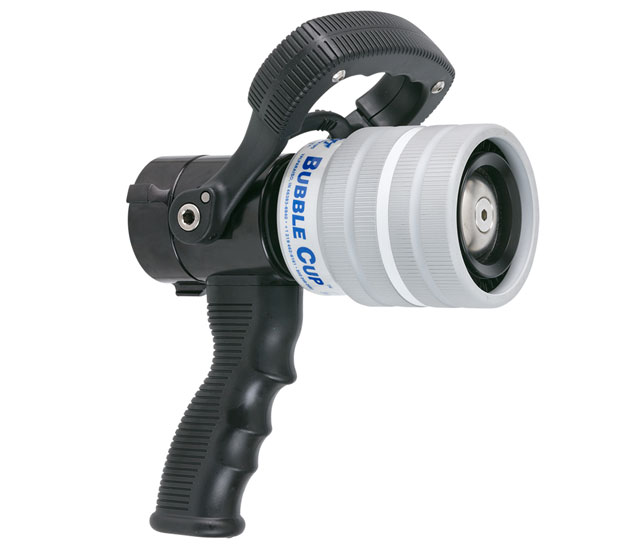

FS95BCP
BUBBLE CUP W/GRIP 1.5" NH (38mm)


Part No:FS95BCP


  Details
BUBBLE CUP W/GRIP 1.5" NH (38mm)
Dual gallonage Bubble Cup nozzle with two flow settings 95 gpm @ 100 psi (360 l/min @ 7 bar). All lightweight materials, hardcoat anodized aluminum. Quick-change rear valve seat, stainless steel shut-off ball and a twist "off" position for positive shut off. Pistol grip is mounted below the valve. Rocker lug 1.5" NH (38 mm) swivel is standard.

Weight: 3.1 lbs (1.406 kg)

Flow Control Method Selectable Flow at a pressure (flow changes with pattern)
Flow Rate 95 gpm (360 l/min)
Coupling Size 1.5 inch (38mm)
Coupling Style (Nozzles) Rocker
Coupling Swiveling/Rigid (Nozzles) Swivel (non-full time, no swivel after tightening)
Connection Type NH Female
Pressure 100 psi (7bar)
Nozzle Body Style Nozzle with shutoff and pistol grip
Valve Design Ball Valve (Stainless)
Valve Actuation Method Horseshoe (Injection Molded Nylon w/ Colored Handle)
Fog Pattern Method no teeth
Nozzle Bumper Material Metal - aluminum
Certifications N/A
Foam Expansion Performance Low Expansion


     Related Videos
    Pistol Grip Replacement

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Bail Handle and Valve Seat Ball Valve

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Foam Concentrate Video

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Foam Overview Video

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    BubbleCup and QuadraCup Series Video

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Visual Nozzle Inspection

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE





PRODUCT SERIES OVERVIEW
•   The BubbleCup and QuadraCup are TFT exclusives designed specifically for water and foam applications with Class A and AFFF foam in a single nozzle, no attachments necessary.
•   The BubbleCup and QuadraCup are ideally suited to work with eductors, on-board foam proportioning systems, or even batch mixed foam solutions and can easily move from aspirated foam to a wide protective fog pattern.
•   The BubbleCup and QuadraCup offer models specifically for break-and-extend operations, or with an integrated stainless steel ball shutoff and TFT's unique "quick change" rear valve seat as well as color coded handle and pistol grip.
