Part No:BP20-057T

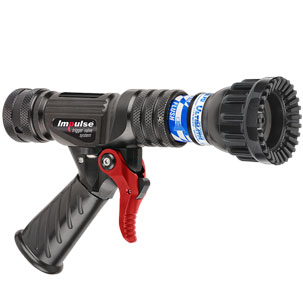

ULTIMATIC FO7 W/TRIG 1.0"BSP 50-220 L/MIN @5BAR FLASHOVER The Ultimatic® series is a robust, automatic firefighting nozzle that delivers reliable, adjustable flow rate configuration for demanding fire ground scenarios. With a full assortment of flow-range options, Ultimatic® nozzles are ideal for discerning fire departments that are in pursuit of the most consistent attack package. Designed for quick and easy stream adjustments, these nozzles offer precision and power, with patented slide or trigger valve systems for dependable performance.
Key Features:
- Automatic Flow Adjustment: Automatically adjusts flow rates to provide 10-125 GPM (40-500 LPM) for versatile firefighting applications
- High & Low-Pressure Options: Available in both 100 PSI (7 bar) and 75 PSI (5 bar) models for tailored pressure needs
- Dual Valve Styles: Choose between patented slide and trigger valves for precise stream control
- Durable Construction: Built for rugged environments with options for rocker lug, knurled, and quick-connect inlets
- Ergonomic Design: Available with pistol grip handles for enhanced control and ease of use
- Foam Compatible: Works seamlessly with foam solutions, including specialized flashover nozzle options
- Adaptable Stream Patterns: Adjustable from straight stream to dense fog with detent flow control for precision targeting
- Hose Compatibility: Compatible with 1" (25 mm) and 1.5" (38 mm) hoses, and options for BSP, NH, and Storz connections
Weight: 2.6 lbs ( kg)
|
|
|
 |
|
| Fog Pattern Method |
Molded Rubber Teeth (fixed) |
| Flow Control Method |
Automatic (constant pressure, constant gallonage, flow does not change with pattern) |
| Flow Rate |
50-220 L/MIN |
| Coupling Size |
1.0 inch (25mm) |
| Coupling Style (Nozzles) |
Knurled (Diamond pattern) |
| Coupling Swiveling/Rigid (Nozzles) |
Swivel (full time, even after tightening) |
| Connection Type |
BSP Female |
| Pressure |
5 bar |
| Nozzle Body Style |
Nozzle with shutoff and pistol grip |
| Valve Design |
Slide Valve (Stainless) |
| Valve Actuation Method |
Valve w/Trigger |
| Nozzle Bumper Material |
Rubber - bonded |
|
