AXD7NP-NX-T
LEFT JBIV-LP 4.0"NHF X 6.0"NHF


Part No:AXD7NP-NX-T


  Details

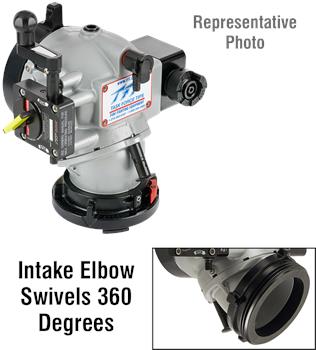

JBIV-LOW PROFILE 4.0"F X 6.0"F ALUMINUM / TOP CRANK / PRV
The Jumbo Low-Profile Ball Intake Valves are designed for tight apparatus compartments and high-flow applications. With manual and remote control options, they come in swiveling elbow configurations for easy hose connections. The valves offer compatibility with Storz and NH thread types and feature optional pressure relief valves for added safety. Their low-profile design ensures they are ideal for compact setups, while maintaining high water flow and durability.

Key Features:
  • Low-Profile Design: Fits compact setups while still supporting high water flow.
  • Swiveling Elbow Configuration: Enhances hose connection flexibility in tight spaces.
  • Manual and Remote Control Options: Available with top crank, front crank, or remote controls for versatile operation.
  • Storz and NH Thread Compatibility: Ensures wide compatibility with firefighting apparatus connections.
  • Pressure Relief Valve Option: Helps regulate and prevent overpressure, ensuring system safety.
  • Durable Construction: Built to withstand tough firefighting conditions while maintaining performance.
  • Handles High-Flow Applications: Designed for effective water flow in high-demand firefighting operations.


Weight: 26.8 lbs ( kg)

Water Flow Style Valve with Elbow
Waterway Size 5.25 inch (133mm)
Profile Low Profile
Valve Actuation Method Crank
Valve Design Ball Valve (Aluminum)
Coupling Size Side A 6.0 inch (150mm)
Coupling Style Side A Handle
Coupling Swiveling/Rigid Side A Swivel (non-full time, no swivel after tightening)
Connection Type Side A NH Female
Coupling Size Side B 4.0 Inch (100mm)
Coupling Style Side B Rocker
Coupling Swiveling/Rigid Side B Swivel (non-full time, no swivel after tightening)
Connection Type Side B NH Female
Pressure Relief Valve Has PRV
Finish Powdercoated Stardust Silver
Gear Box Style Shaft on Top
Operation Energy Source Manual






   Related Product Groups

› Adapters

› Elbows

› and Caps

› LDH ACCESSORIES
PRODUCT SERIES OVERVIEW
•   The Ball Intake and Jumbo Ball Intake Valves are ideally suited for high performance water flow with large water ways and limited loss at flows up to 3000 gpm. TFT's unique polymer ring coupling design prevents corrosion by elimination of issues of dissimilar metals. Models are available in either manual or remote control configurations for any apparatus application.
•   The Ball Intake and Jumbo Ball Intake Valves allow for multiple control configurations, as well as a top mounted control to allow ease of use on all apparatus pump panel designs. The stainless half ball design, as well as other internal stainless components and TFT's exclusive hard anodized and powder coated finish prevent unwanted corrosion.
•   The Ball Intake and Jumbo Ball Intake Valves incorporate a swiveling inlet to prevent unwanted kinking of supply lines for applications where space is critical, non-swiveling inlet models are available. All BIV models remain dry when in the shut position, and are available with a fast reacting, high volume field settable pressure relief valve.
