Part No:AN3P7P01

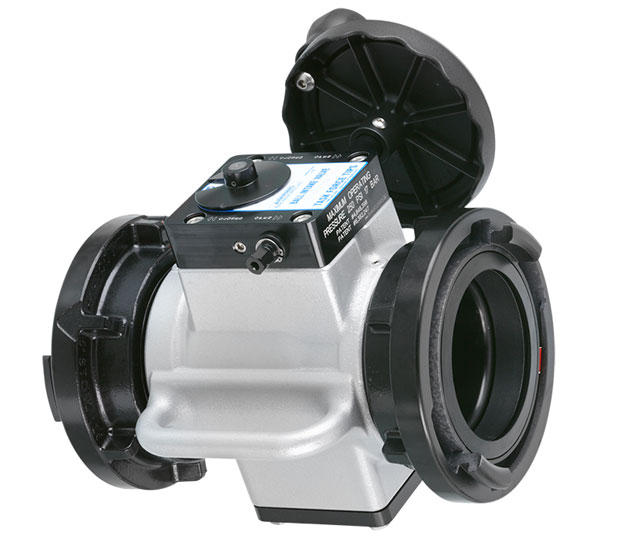

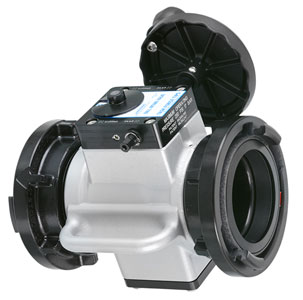

IN-LINE VALVE WITH STANDARD GEARBOX
TFT's In-Line Valve is a multi-purpose valve designed for use with 3.5, 4, 4.5 or 5 inch (90, 100, 114, 125 or 150 mm) hose. Maximum operating pressure is 250 psi (17bar). Meets 900psi (62 bar) hydrostatic strength test. The aluminum casting are Hardcoat anodized, and powder coat finished inside and out for maximum corrosion protection. The valve meets NPFA slow close requirements. Optional adjustable pressure relief valve meets NFPA 1900. Optional rugged ¾" (19 mm) air bleed valve quickly bleeds air from the lines or drains water from the valve housing. Contact TFT customer service for configurations not shown.
Weight: 25.3 lbs ( kg)
|
|
|
 |
|
| Water Flow Style |
LDH In Line Valve |
| Operation Energy Source |
Manual |
| Waterway Size |
3.65 inch (92.7mm) |
| Valve Actuation Method |
Handwheel (6 Inch, Injection Molded Nylon) |
| Valve Design |
Ball Valve (Aluminum) |
| Coupling Size Side A |
4.0 Inch (100mm) |
| Coupling Style Side A |
Rocker |
| Coupling Swiveling/Rigid Side A |
Swivel (full time, even after tightening) |
| Connection Type Side A |
NH Female |
| Coupling Size Side B |
4.0 Inch (100mm) |
| Coupling Style Side B |
Male Threads |
| Coupling Swiveling/Rigid Side B |
Rigid |
| Connection Type Side B |
NH Male |
| Pressure Relief Valve |
No PRV |
| Finish |
Powdercoated Stardust Silver |
| Gear Box Style |
Shaft on Side |
| Material |
Lightweight Cast Aluminum Alloy |
|
