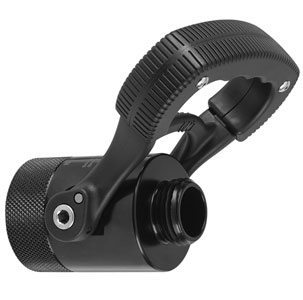

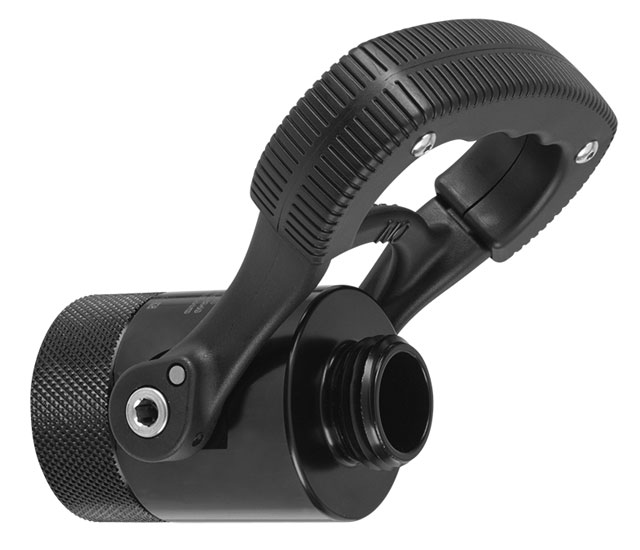

Part No:D100D
BALL VALVE 1.0” NH X 1.0” NH (25mm x 25mm)
Ball Valve with an unobstructed 1.0” (25 mm) waterway. All lightweight materials, hard coat anodized aluminum. Changeable rear valve seat and stainless steel shut-off ball. Optional color coded handle covers available. 1.0” NH (25 mm) knurled swivel inlet, and 1.0” NH (25 mm) male outlet standard.
Weight: 1.4 lbs ( kg)
|
|
|
 |
|
| Water Flow Style |
Valve |
| Coupling Size Side A |
1.0 inch (25mm) |
| Coupling Style Side A |
Knurled (Diamond pattern) |
| Coupling Swiveling/Rigid Side A |
Swivel (non-full time, no swivel after tightening) |
| Connection Type Side A |
NH Female |
| Coupling Size Side B |
1.0 inch (25mm) |
| Coupling Style Side B |
Male Threads |
| Coupling Swiveling/Rigid Side B |
Rigid |
| Connection Type Side B |
NH Male |
| Valve Design |
Ball Valve (Stainless) |
| Valve Actuation Method |
Horseshoe (Injection Molded Nylon w/ Colored Handle) |
| Waterway Size |
1.0 inch (25mm) |
| Nozzle Body Style |
Nozzle with shutoff |
|
