Part No:D100DP
VALVE W/GRIP 1.0" NH X 1.0" NH (25mm x 25mm)

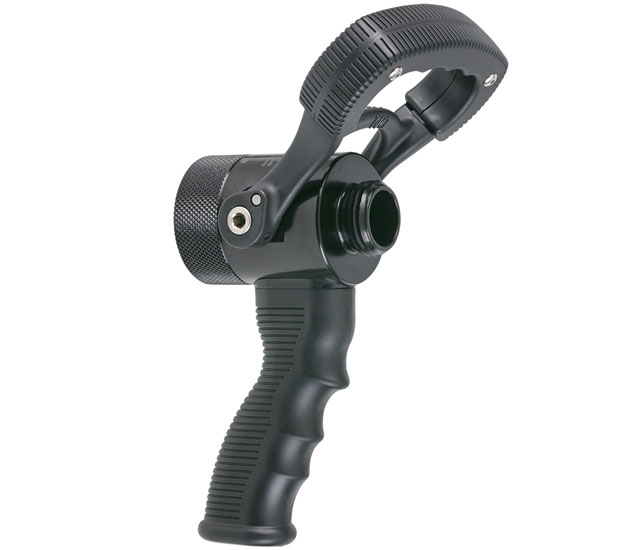

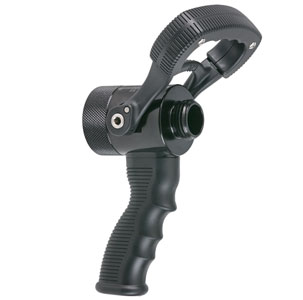

Ball Valve with an unobstructed 1.0" (25 mm) waterway. All lightweight materials, hard coat anodized aluminum. Changeable rear valve seat and stainless steel shut-off ball. Pistol grip is mounted below the valve. Optional color coded pistol grip and handle covers available. 1.0" NH (25 mm) knurled swivel inlet, and 1.0" NH (25 mm) male outlet standard.
Weight: 1.7 lbs (0.453 kg)
|
|
|
 |
|
| Water Flow Style |
Valve |
| Coupling Size Side A |
1.0 inch (25mm) |
| Coupling Style Side A |
Knurled (Diamond pattern) |
| Coupling Swiveling/Rigid Side A |
Swivel (non-full time, no swivel after tightening) |
| Connection Type Side A |
NH Female |
| Coupling Size Side B |
1.0 inch (25mm) |
| Coupling Style Side B |
Male Threads |
| Coupling Swiveling/Rigid Side B |
Rigid |
| Connection Type Side B |
NH Male |
| Valve Design |
Ball Valve (Stainless) |
| Valve Actuation Method |
Horseshoe (Injection Molded Nylon w/ Colored Handle) |
| Waterway Size |
1.0 inch (25mm) |
| Nozzle Body Style |
Nozzle with shutoff and pistol grip |
|
