Product Details

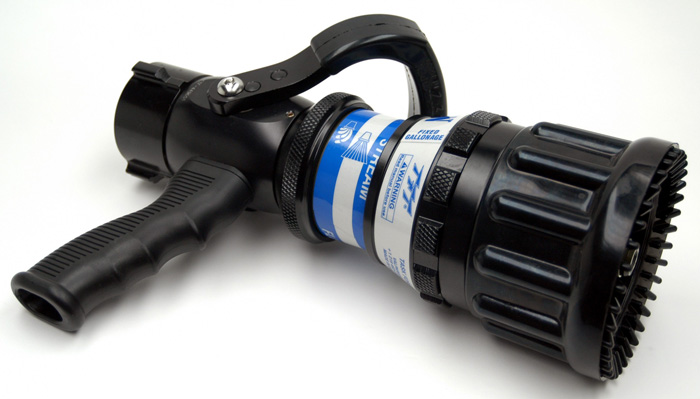

MDF14A
500 gpm @ 100 PSI (2000 l/min @ 7 bar) MAX-FLOW W/GRIP (65mm)


Part No:MDF14A


  Details
500 gpm @ 100 PSI (2000 l/min @ 7 bar) MAX-FLOW W/GRIP (65mm)
Fixed Gallonage. The fixed orifice tip is ideal for high rise attack when pressure fluctuations can be extreme. Water pattern adjusts from straight stream to a 120 degree wide fog. Further rotation opens the nozzle to flush 3/8" (1 cm) debris without shutting down. 1.5" (38 mm) ball-type shutoff valve with built-in pistol grip mounted below the valve body, six detent flow positions, optional colored pistol grips and handle covers. 1.5" NH (38 mm) rocker lug full-time swivel coupling. All lightweight materials.

Weight: 8.6 lbs (3.9 kg)

Flow Control Method Fixed Flow at a pressure (constant gallonage, flow does not change with pattern)
Flow Rate 500 gpm (2000 l/min)
Coupling Size 2.5 inch (65mm)
Coupling Style (Nozzles) Rocker
Coupling Swiveling/Rigid (Nozzles) Rigid
Pressure 100 psi (7bar)
Nozzle Body Style Tip with no shutoff
Valve Design No Valve
Valve Actuation Method No Actuation Method
Fog Pattern Method Molded Rubber Teeth (fixed)
Nozzle Bumper Material Rubber - bonded
Certifications N/A
Foam Expansion Performance N/A


     Related Videos
    Pistol Grip Replacement

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Max Series

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE






   Related Product Groups

› Blitzfire Monitors

› Max-Series Handline

› Tornado Monitors
PRODUCT SERIES OVERVIEW
•   The Max Series Handline nozzles incorporates a high volume ball style valve and handheld models include the exclusive integrated debris screen to prevent stream quality degradation. All models accept the low expansion foam attachment for increased finished foam performance with Class A and AFFF concentrates.
•   The Max Series Handline nozzles are available with 100/55psi dual pressure, or 100 or 80 psi pressure choices to meet any fire ground operational challenge. The high strength bonded rubber fog teeth provide a full filled pattern that pushes heat flame and smoke ahead and away from the firefighting team.
•   The Max Series Handline nozzles come standard with reflective labeling, as well as your choice of color coded pistol grip and shut off handle. This single or dual pressure variable gallonage nozzle series is available in tip only and valved configurations, is individually serialized, and comes with TFT’s exclusive 5 year warranty.
