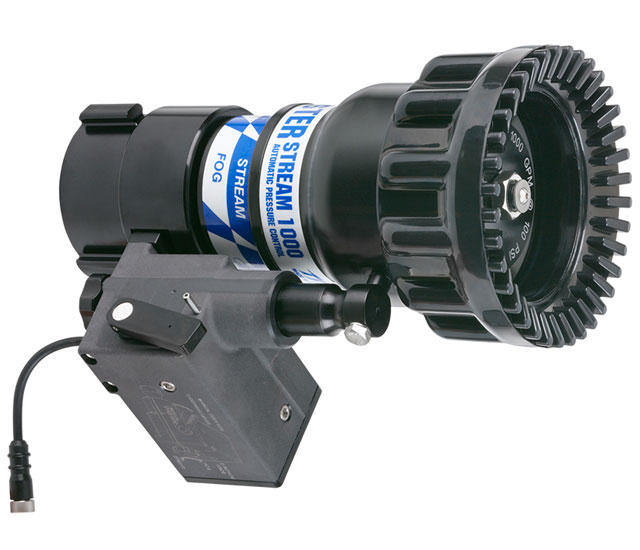

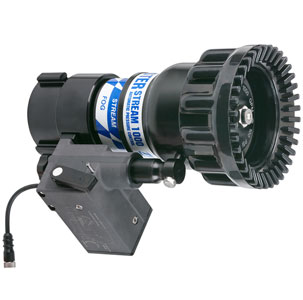

Part No:MERFP1000-NJ
MASTER ELECTRIC REMOTE FIXED FLOW 2.5" NH (65mm)
This nozzle, built on the Master Stream body, is a fixed constant flow nozzle. It is factory preset at the customer's specified K-factor 50 to 105 (1000 gpm (4000 l/min) max ). 2.5" NH (65 mm) rocker lug swivel coupling is standard. 3.0" NH (75mm) or 3.5" NH (90mm) coupling is optional. Flow and pressure are laser engraved on the baffle. For use on TFT RC monitors only.
Weight: 12.5 lbs ( kg)
|
|
|
 |
|
| Operation Energy Source |
Electric (12/24 vdc) |
| Electrical Connection Method |
Plug (with smart stream technology) |
| Flow Control Method |
Fixed Flow at a pressure (constant gallonage, flow does not change with pattern) |
| Flow Rate |
150-1000 gpm (600-3800 l/min) |
| Coupling Size |
2.5 inch (65mm) |
| Coupling Style (Nozzles) |
Rocker |
| Coupling Swiveling/Rigid (Nozzles) |
Swivel (non-full time, no swivel after tightening) |
| Pressure |
100 psi (7bar) |
| Nozzle Body Style |
Tip Only - Remote Controlled |
| Valve Design |
No Valve |
| Valve Actuation Method |
No Actuation Method |
| Fog Pattern Method |
Molded Rubber Teeth (fixed) |
| Nozzle Bumper Material |
Rubber - bonded |
| Certifications |
N/A |
| Hazardous Location Certification |
N/A |
|
