| Z1129A |
|
Valve with Threaded Exit |
Part No:Z1129A

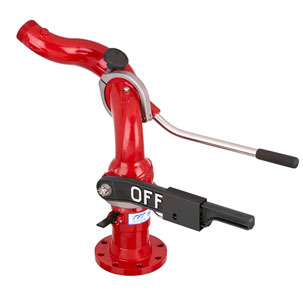

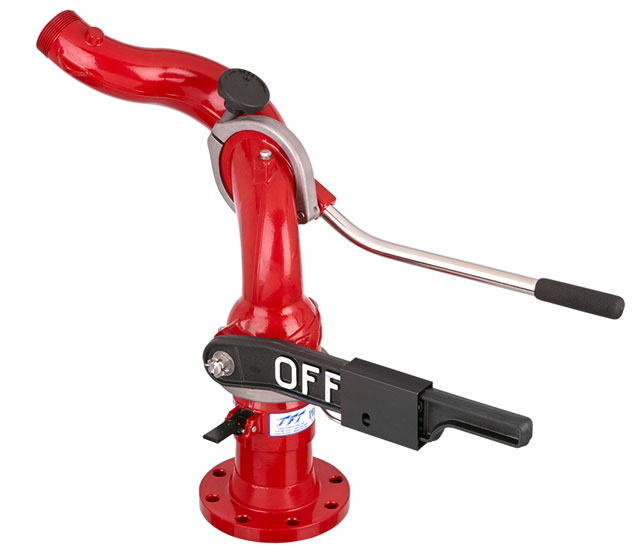

Valve with Threaded Exit
Protector monitor with on/off valve and 2.5" (65 mm) threaded exit. 1250 gpm (4500 l/min) rating. See chart to obtain model number for specific inlet and outlet options
Weight: 39 lbs (0 kg)
|
|
|
 |
|
| Monitor Configuration |
Fixed Mount |
| Flow Rate - Monitors |
Flow up to 1250gpm |
| Operation Energy Source |
Manual |
| Monitor Inlet |
4 Inch ANSI 150 |
| Monitor Outlet |
2.5" SPL Male |
| Horizontal Control |
Tiller Bar with Lever Action Rotational Lock |
| Horizontal Movement (degrees) |
Continuous 360 |
| Vertical Control |
Tiller Bar with Lock Knob |
| Vertical Movement (degrees) |
70 below to 80 above horizontal |
| Safety Shutoff |
No Safety Shutoff |
| Pressure Relief Valve |
No PRV |
| Valve Design |
Ball Valve (Stainless) |
| Finish |
Powdercoated American Red |
| Certifications |
N/A |
|
