Part No:Z1119A

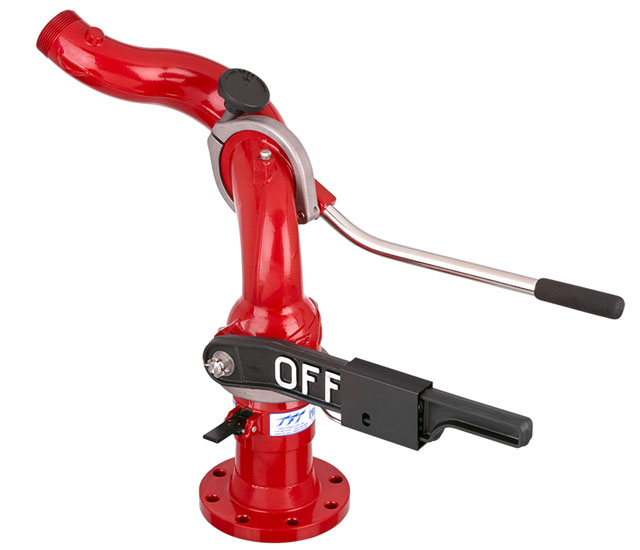

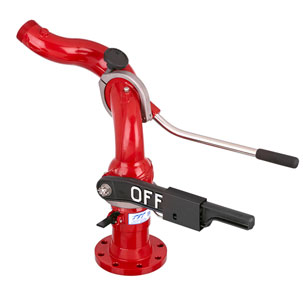

Valve with Threaded Exit The Protector™ industrial fixed station monitor delivers exceptional performance with a flow capacity of up to 1250 GPM (4750 LPM). Engineered for durability and efficiency, the Protector offers full 360° rotation, low friction loss, and optional integrated features to enhance your firefighting operations.
Key Features:
- High-Capacity Flow: Capable of flowing up to 1250 GPM (4750 LPM), the Protector provides powerful water delivery for industrial firefighting applications
- Full 360° Rotation: The monitor’s full rotational ability allows precise water stream direction, ensuring coverage of all critical areas without repositioning the unit
- Low Friction Loss: The patented waterway design with integral stream-shaping vanes minimizes friction loss, maximizing flow efficiency for longer reach and higher performance
- Optional Integrated Shutoff Valve: Eliminate the need for additional valves with a built-in shutoff valve that offers intuitive control – horizontal for “OFF” and vertical for “ON” positions
- Automatic Drain Valve: Protects against corrosion and freezing by ensuring complete drainage of the monitor after use – the integrated drain valve is conveniently located above the valve seat
- Durable Construction: Built with hard coat anodized aluminum and powder-coated inside and out for superior resistance to harsh environments – stainless steel hardware ensures long-lasting reliability
- Easy Maintenance: The Protector requires no grease or specialized maintenance – swiveling elements and seals, including the valve seat, can be replaced in minutes using standard tools
- Flexible Mounting Options: Directly bolt the Protector to common pipe flanges – the outlet is available with 2.5" (65 mm) male threads to accommodate various nozzle configurations
- Ergonomic Control: The lever-action rotational lock securely holds the monitor in position, while the tiller bar provides intuitive manual operation for precise stream adjustments
- High-Pressure Tolerance: Designed to withstand pressures of up to 250 PSI (17 bar), making it suitable for demanding industrial applications
- Warranty and Identification: Each unit includes a laser-engraved serial number and is backed by a 5-year warranty for added peace of mind
Weight: 36 lbs (0 kg)
|
|
|
 |
|
| Monitor Configuration |
Fixed Mount |
| Flow Rate - Monitors |
Flow up to 1250gpm |
| Operation Energy Source |
Manual |
| Monitor Inlet |
3 Inch ANSI 150 |
| Monitor Outlet |
2.5" SPL Male |
| Horizontal Control |
Tiller Bar with Lever Action Rotational Lock |
| Horizontal Movement (degrees) |
Continuous 360 |
| Vertical Control |
Tiller Bar with Lock Knob |
| Vertical Movement (degrees) |
70 below to 80 above horizontal |
| Safety Shutoff |
No Safety Shutoff |
| Pressure Relief Valve |
No PRV |
| Valve Design |
Ball Valve (Stainless) |
| Finish |
Powdercoated American Red |
| Certifications |
N/A |
|
