Product Details

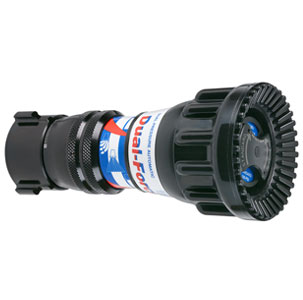

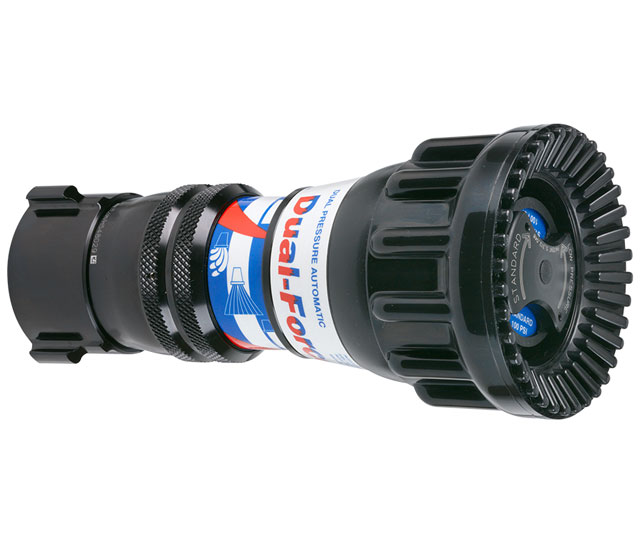

HD-TO
DUAL-FORCE TIP 1.5" NH (38mm)


Part No:HD-TO


 Details
DUAL-FORCE TIP 1.5" NH (38mm)
The Dual-Force® Automatic Nozzle is engineered for adaptability on the fireground, allowing seamless switching between standard and low-pressure modes. Available in various configurations, the Dual-Force® provides a flow range from 95 to 300 GPM (360-1150 LPM) and is compatible with multiple hose sizes and couplings. Its patented slide valve, durable design, and foam compatibility make it a reliable choice for both structural and wildland firefighting. Equip your team with a nozzle that maximizes control, versatility, and durability.

Key Features:
  • Dual-Pressure Modes: Select between 45/75 PSI or 55/100 PSI, enabling customizable flow for different firefighting scenarios
  • Flow Range: Adjustable from 95 to 300 GPM (360-1150 LPM) to meet varied firefighting needs
  • Versatile Hose Compatibility: Works with 1.5" to 2.5" (38-65 mm) hoses, fitting NH or Storz couplings
  • Slide Valve Control: Patented stainless-steel valve for precise flow regulation and smooth operation
  • Rubber Bumper with Fog Teeth: Ensures optimized fog pattern and protects against impact damage
  • Foam Attachment Options: Compatible with low or multi-expansion foam attachments for added suppression capability
  • Flush Without Shutdown: Maintain flow and prevent clogs with easy flushing capability
  • Pistol Grip Option: Enhanced handling for targeted and steady control, available on specific models


Weight: 5 lbs (2.267 kg)

Flow Rate 95-300 gpm (360-1150 l/min)
Coupling Size 1.5 inch (38mm)
Coupling Style (Nozzles) Rocker
Coupling Swiveling/Rigid (Nozzles) Rigid
Pressure 55 & 100 psi (3 & 7 bar)
Nozzle Body Style Tip with no shutoff
Valve Design No Valve
Valve Actuation Method No Actuation Method
Fog Pattern Method Molded Rubber Teeth (fixed)
Nozzle Bumper Material Rubber - bonded
Certifications N/A


     Related Videos
    Dual Pressure Knob Replacement

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Handline Upgrade for Nozzles

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    How to Adjust a TFT Slide Valve

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Dual Force Series

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Visual Nozzle Inspection

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE






   Related Product Groups

EDUCTORS

•   The full size Dual Force Handline nozzle incorporates TFT’s unique stainless steel slide valve for turbulence free flow control and includes the exclusive integrated debris screen to prevent stream quality degradation. All models accept low and multi-expansion foam attachments for increased finished foam performance.

•   The full size Dual Force Handline nozzle is available with 100/55psi or 75/45psi operational pressure choices to meet any fire ground operational challenge. The high strength bonded rubber fog teeth provide a full filled pattern that pushes heat flame and smoke ahead and away from the firefighting team.

•   The full size Dual Force Handline nozzle comes standard with reflective labeling as well as your choice of color coded pistol grip and shut off handle. This dual pressure variable gallonage nozzle series is available in tip only, shut off, and playpipe configurations, is individually serialized, and comes with TFT’s exclusive 5 year warranty.



DUAL-FORCE ® is a registered trademark of Task Force Tips, Inc.
