Product Details
HML-VPGIS
LOW PRESSURE 75 PSI VERSION


Part No:HML-VPGIS


  Details
LOW PRESSURE 75 PSI VERSION

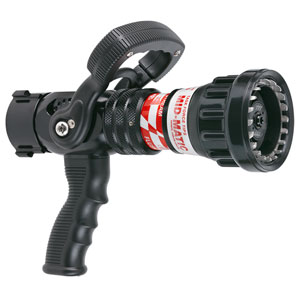

The Mid-Matic™ Automatic Nozzle is designed for firefighting teams requiring mid-range flow and flexible pressure options. Delivering between 25-200 GPM (100-750 LPM), the Mid-Matic™ provides efficient water application with easy customization. Built to meet NFPA standards, it features a patented slide valve, detent flow control, and is available with various grip and coupling options for enhanced handling on the fireground.

Key Features:
  • Adjustable Pressure Choices: Available in 75, 80, and 100 PSI (5, 6, and 7 Bar) for accurate flow settings
  • Flow Range: Delivers between 25-200 GPM (100-750 LPM), ideal for mid-range applications
  • Hose Compatibility: Fits 1.5” to 2” (38-52 mm) hoses, available in NH, BSP, and BIC connections
  • Slide Valve Control: Patented slide valve offers turbulence-free operation for smooth flow adjustments
  • Fog Pattern Teeth: Choose from molded rubber or metal spinning teeth for versatile fog patterns
  • Flush Without Shutdown: Easily clear obstructions without stopping water flow
  • Grip Options: Pistol grip configurations for enhanced control
  • Color & Safety Indicators: Black finish with optional flashover nozzle for advanced firefighting techniques


Weight: 6 lbs ( kg)

Flow Control Method Automatic (constant pressure, constant gallonage, flow does not change with pattern)
Flow Rate 70-200 gpm (260-760 l/min)
Coupling Size 1.5 inch (38mm)
Coupling Style (Nozzles) Rocker
Coupling Swiveling/Rigid (Nozzles) Swivel (full time, even after tightening)
Connection Type NH Female
Pressure 75 psi (5bar)
Nozzle Body Style Nozzle with shutoff and pistol grip
Valve Design Slide Valve (Stainless)
Valve Actuation Method Horseshoe (Injection Molded Nylon w/ Colored Handle)
Fog Pattern Method stainless steel teeth (spinning)
Nozzle Bumper Material Rubber - bonded
Certifications NFPA/FM


     Related Videos
    Mid-Matic/Mid-Force

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Pistol Grip Replacement

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Mid-Matic Series

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Visual Nozzle Inspection

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE






   Related Product Groups

› EDUCTORS

› FOAM ASPIRATION ATTACHMENTS

› Tornado Monitors
PRODUCT SERIES OVERVIEW
•   The Mid-Matic handline nozzle incorporates TFT’s unique stainless steel slide valve for turbulence free flow control and includes the exclusive integrated debris screen to prevent stream quality degradation. All models accept low and multi-expansion foam attachments for increased finished foam performance.

•   The Mid-Matic handline nozzle is available with 100, 75 or 55psi operational pressure choices to meet any fire ground operational challenge. All models are available with your choice of high strength bonded rubber fog teeth which provide a full filled pattern, or the wide protective pattern of TFT’s unique stainless steel spinning teeth design.
•   The Mid-Matic handline nozzle comes standard with reflective labeling as well as your choice of color coded pistol grip and shut off handle. This constant pressure variable gallonage nozzle series is available in tip only and shut off configurations, is individually serialized, and comes with TFT’s exclusive 5 year warranty.
